The CTR61N-P92 is a rugged industrial UHF RFID reader designed for harsh production line environments. Utilizing the Korean PR9200 RF chip, it fully supports EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C standards. With an adjustable read range of 300-2000mm and multiple communication options including RJ45, RS232, RS485, ModbusTCP, and ModbusRTU, it offers flexible integration for various automation applications. The reader features IP67 protection, wide voltage input (9-24V DC), and optional WiFi and heating functions for extreme conditions.

Automated Production Line Tracking

Identifies and tracks items on conveyor belts in manufacturing environments.

Tool and Mold Management

Manages tools and molds in industrial settings by reading their UHF tags for inventory and usage tracking.

‍

Logistics Sorting Systems

Enables automated sorting of packages in distribution centers based on UHF tag information.

‍

Protocol: EPC global UHF Class 1 Gen 2 / ISO 18000-6C Communication protocol: ModbusTCP, ModbusRTU, TCP/UDP Heating device (optional): Low temperature automatic heating (-5°) option (determined by the project site environment) Application Software Interface: Provide API development kit and C and Java application routines

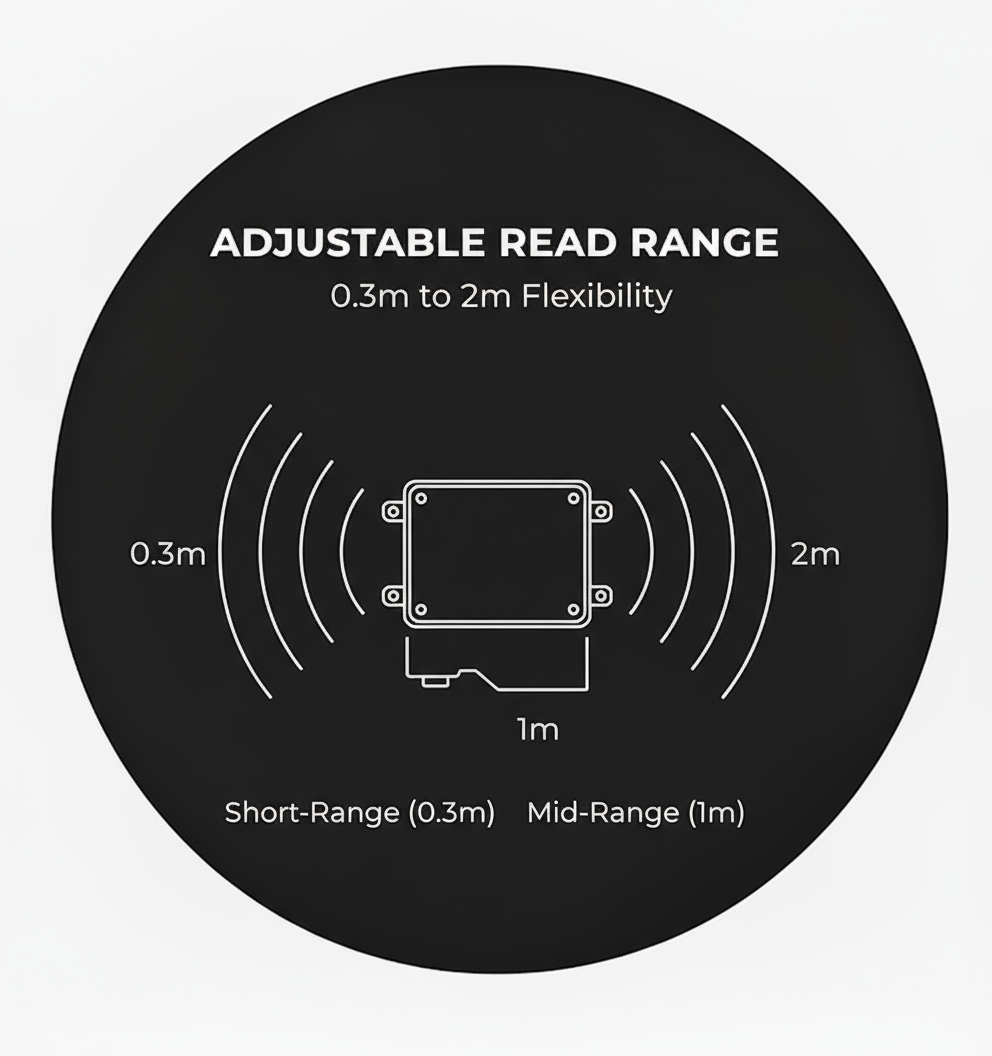

Adjustable Read Distance
Multi-Protocol Communication Support
Rugged IP67 Industrial Design

Tech Specs

Physical Characteristics
Dimensions
95 x 95 x 40 mm
Weight
1.1 Kg
Device Operating System Support
Operating System
OS support
/
Certifications/Compliance
Certification/Standard
US, Canada and other regions following U.S. FCC; Europe and other regions following ETSI EN 302 208 with & without LBT regulations
Other Supported
Supported
Protocol: EPC global UHF Class 1 Gen 2 / ISO 18000-6C Communication protocol: ModbusTCP, ModbusRTU, TCP/UDP Heating device (optional): Low temperature automatic heating (-5°) option (determined by the project site environment) Application Software Interface: Provide API development kit and C and Java application routines
Connect Type
/
Speed
Communication rate: Serial rate 9600～115200bps，RJ45 With 10Mbps
Key Technical Specification
Key Specs
  • Read Range: 300~2000mm (tag dependent)
  • RF Output Power: 13-27dBm±1dBm (adjustable)
  • Communication Interfaces: RJ45, RS232, RS485
  • Supply Voltage: DC 9-24V
  • Protection Rating: IP67
Related Documents
Technical Specification
Primary Applications
UHF RFID reader Industrial RFID Production line tracking Tool management Logistics sorting
