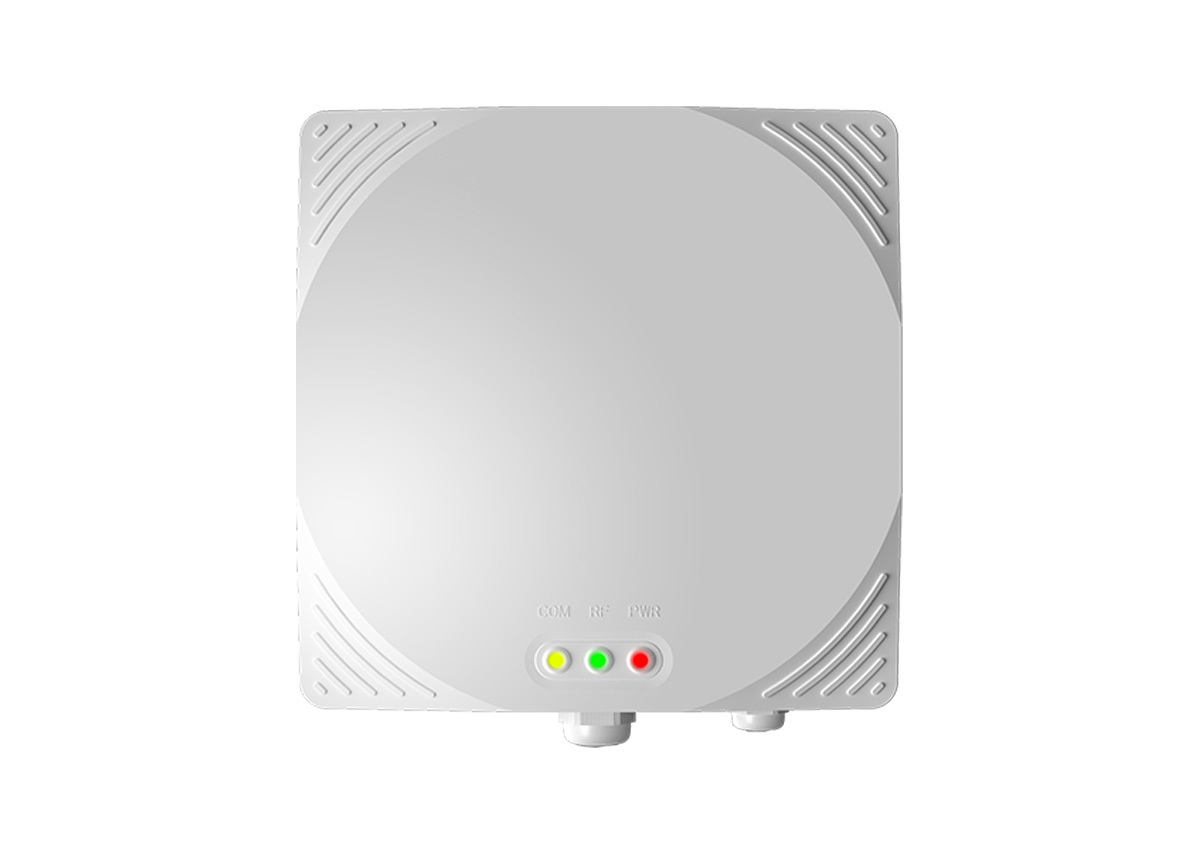

The CTR8090I-J15 is a UHF RFID integrated reader with long-range identification (up to 15m) and IP67 protection. Supporting multiple interfaces and protocols, it is ideal for parking, access control, and warehouse management.

Automated Gates

Automate parking access with reliable long-range reading. Enables unattended operation while maintaining detailed audit trails.

‍

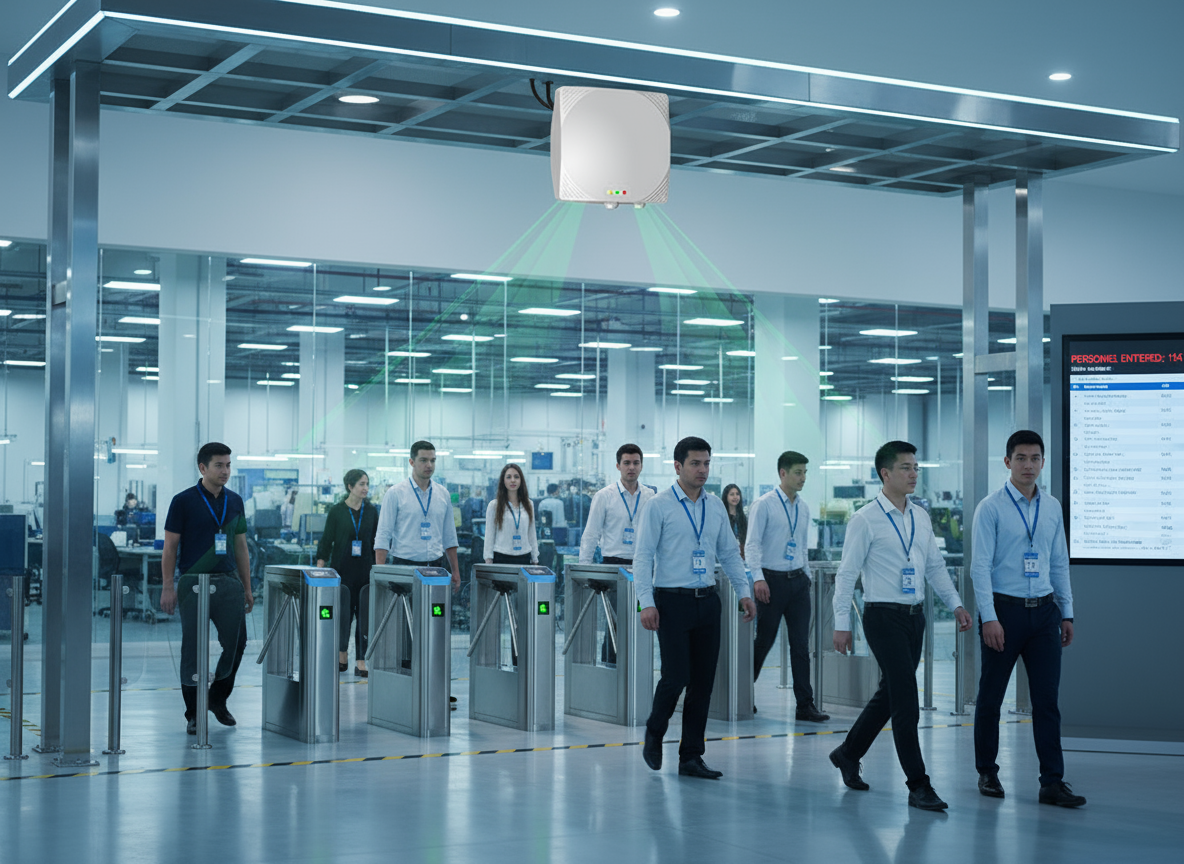

Efficient Personnel Flow

Allow seamless access without card presentation or stopping. Enhances both security and movement efficiency in high-traffic areas.

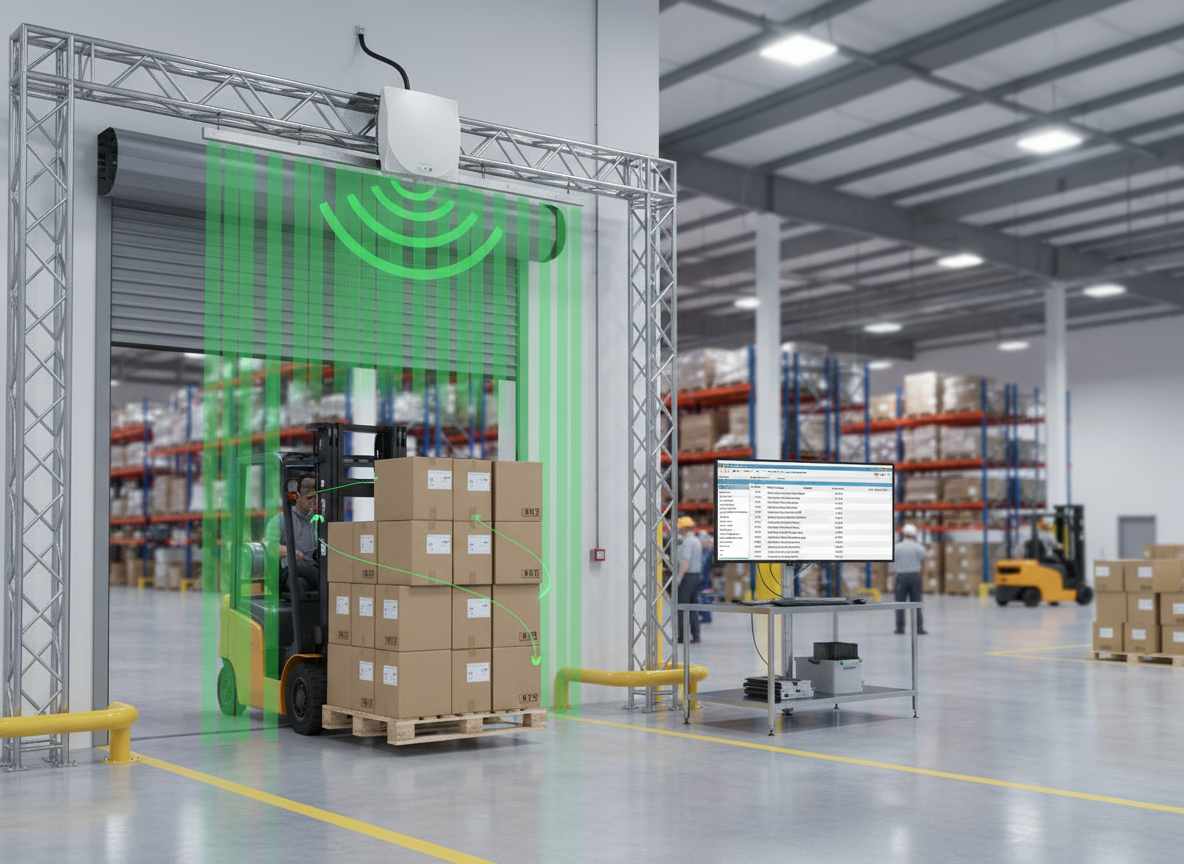

Industrial Logistics & Warehousing

Automatically track goods moving through warehouse points. Provides accurate movement data to streamline operations and eliminate manual scans.

Protocol: EPC global UHF ISO-18000-6C（EPC G2），ISO-18000-6B Communication port: RS232, RS485, Wiegand26/34, TCP/IP or wireless (option) Read/write distance: 9dbi antenna, 6-15m reading range (depend on tag performance) SDK language: VC, VB, JAVA, C#, C++ etc.
IP67-rated for harsh outdoor environments
Up to 15m read range with integrated 9dBi antenna
Multi-interface support (RS485, Wiegand, TCP/IP)

Tech Specs

Physical Characteristics
Dimensions
260 x 260 x 65 (mm)
Weight
3.0 KG
Device Operating System Support
Operating System
OS support
/
Certifications/Compliance
Certification/Standard
/
Other Supported
Supported
Protocol: EPC global UHF ISO-18000-6C（EPC G2），ISO-18000-6B Communication port: RS232, RS485, Wiegand26/34, TCP/IP or wireless (option) Read/write distance: 9dbi antenna, 6-15m reading range (depend on tag performance) SDK language: VC, VB, JAVA, C#, C++ etc.
Connect Type
RS232, RS485, Wiegand26/34, TCP/IP or wireless (option)
Speed
Communication rate: RS232 with 9600～115200bps，RJ45 with 10Mbps
Key Technical Specification
Key Specs
  • Read Range: 6-15m (with 9dBi antenna, tag dependent)
  • Protection Rating: IP67
  • Communication: RS232, RS485, Wiegand, TCP/IP
  • Antenna Polarization: Right-hand Circular Polarization (RHCP)
  • Power Supply: 220V AC Input, +12V/3A DC Output

‍

Related Documents
Technical Specification
Primary Applications
Parking management Warehousing and logistics Access control system Vehicle identification Outdoor deployment
